Nor-Ray-Vac


Nor-Ray-Vac is a gas fired continuous radiant tube heating system, designed specially for the building it is required to heat.


This product is custom built to fit each application. For more information, please contact our sales department.

Product Description

The Nor-Ray-Vac system is designed to provide uniform heat coverage over the entire floor area. Alternatively, the system can also cater for distinct zones providing a varied degree of comfort level within the overall layout of the building. Nortek strives to become part of the ‘design team’, working closely with engineers or end users to determine the specific design parameters for the Nor-Ray-Vac scheme layout. This contact between the company’s engineers and the system designer or client will give the most effective Nor-Ray-Vac system. The result is a heating system designed specifically for the needs of the building and the way that the premises are managed.

Features and Benefits

• Reduces overall costs, with savings of up to 60% being achieved over conventional heating systems
• In-line fuel efficient burners with inputs ranging from 24 to 46kW
• Common vacuum fan operation
• Stoichiometric or ‘perfect’ combustion
• Can be designed 92% combustion efficiency
• Rapid heat-up times
• Good aesthetic integration with building
• Minimal vent penetrations
• Capable of running three 46kW burners in a radiant branch
• Widest range of burner inputs for any continuous system
• Uniform distribution of heat
• Low noise level
• Reliability and safety of operation to the latest European standard for multi-burner systems (EN 777)
• Radiant tube systems such as the Nor-Ray-Vac can be designed to a thermal efficiency of >92%.

Technical Specification

Brochures + Manuals

Product GuideService/Installation

Product Guide

English

Reznor Nortek Nor-Ray-Vac Sales Brochure (Apr 24)



Language: English
Production status: current-production
Download

Service/Installation

English

Reznor, NRV M Assembly, EN, Apr 24, D301041 Iss 2



Language: English
Production status: current-production
Download

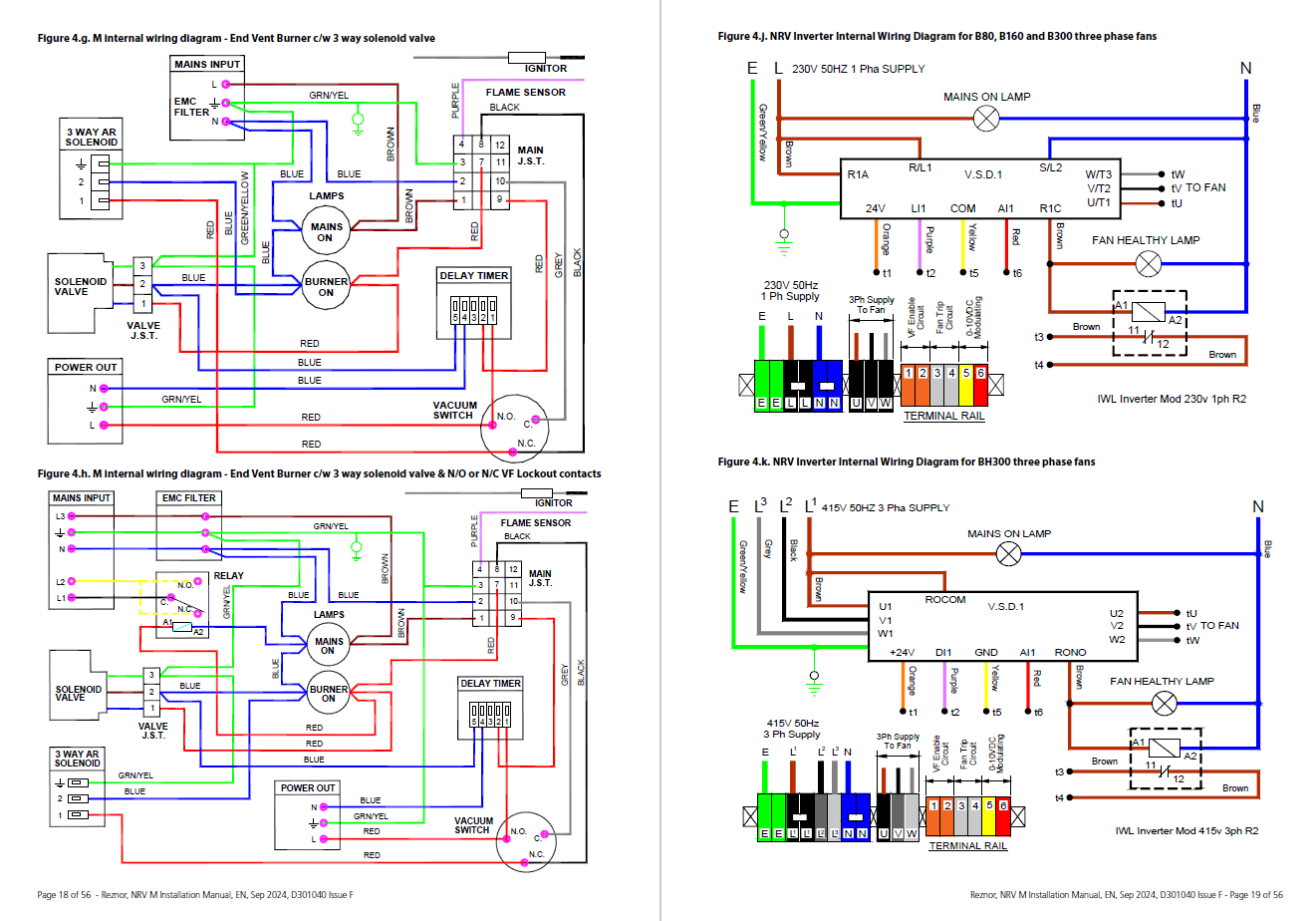

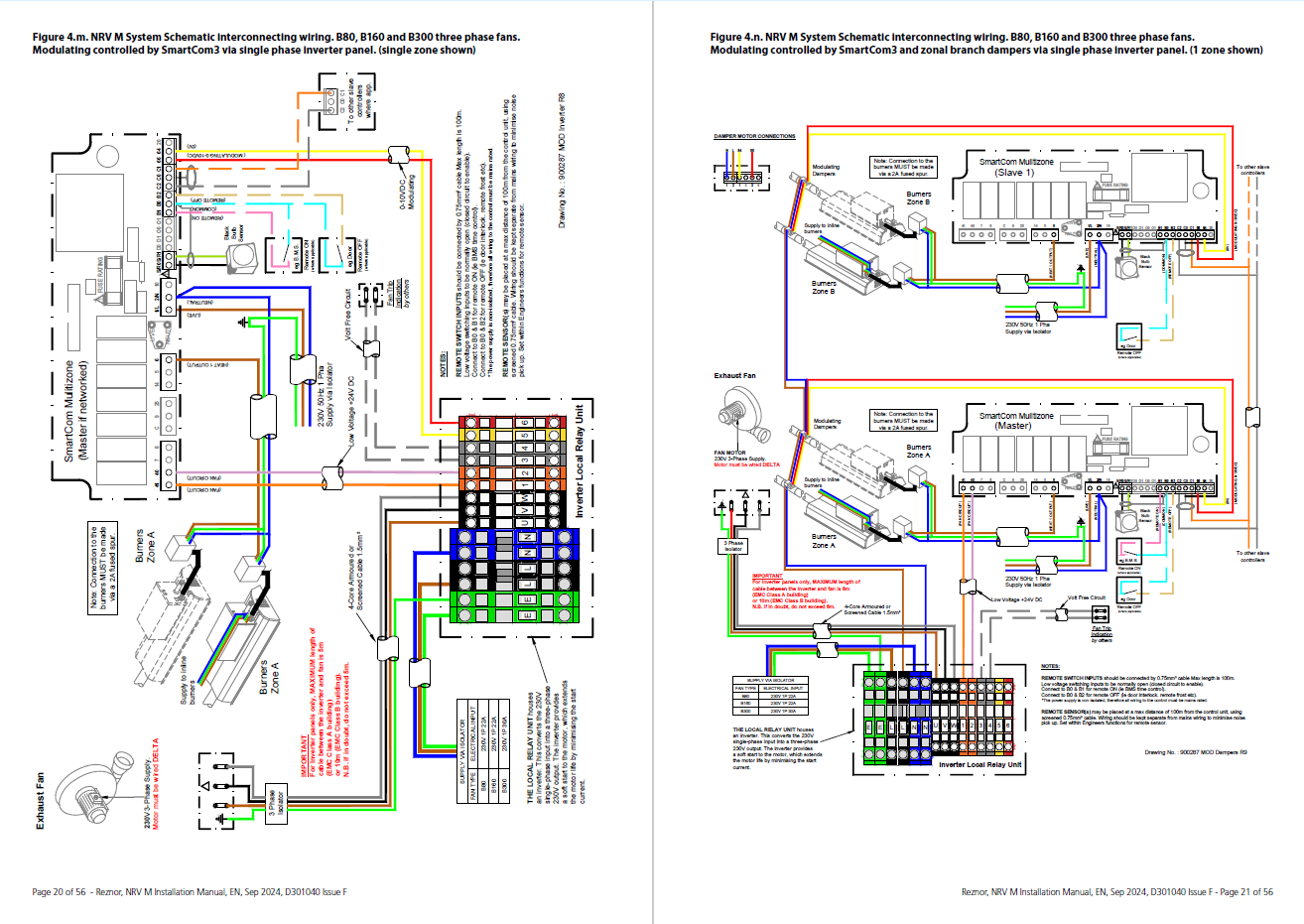

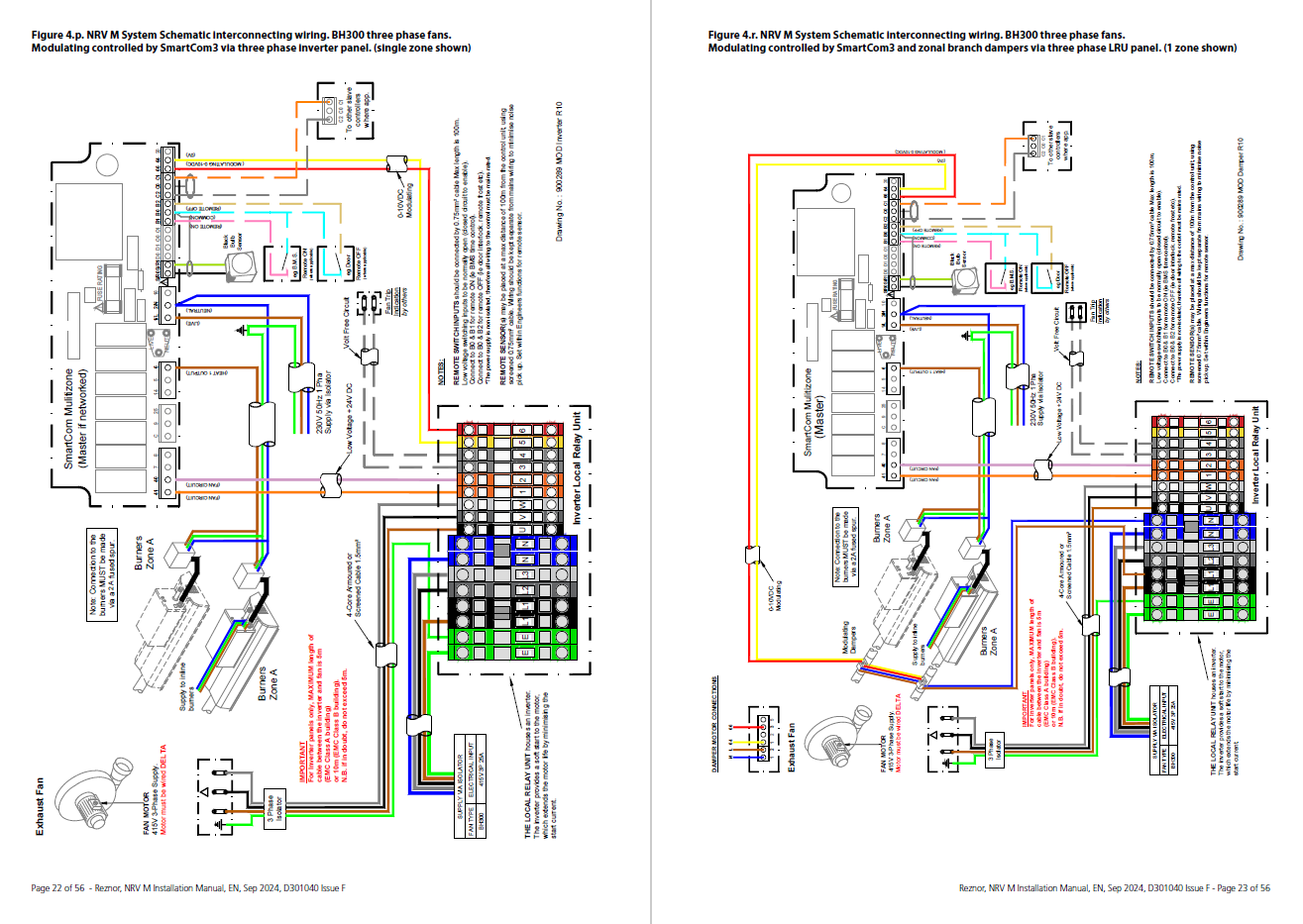

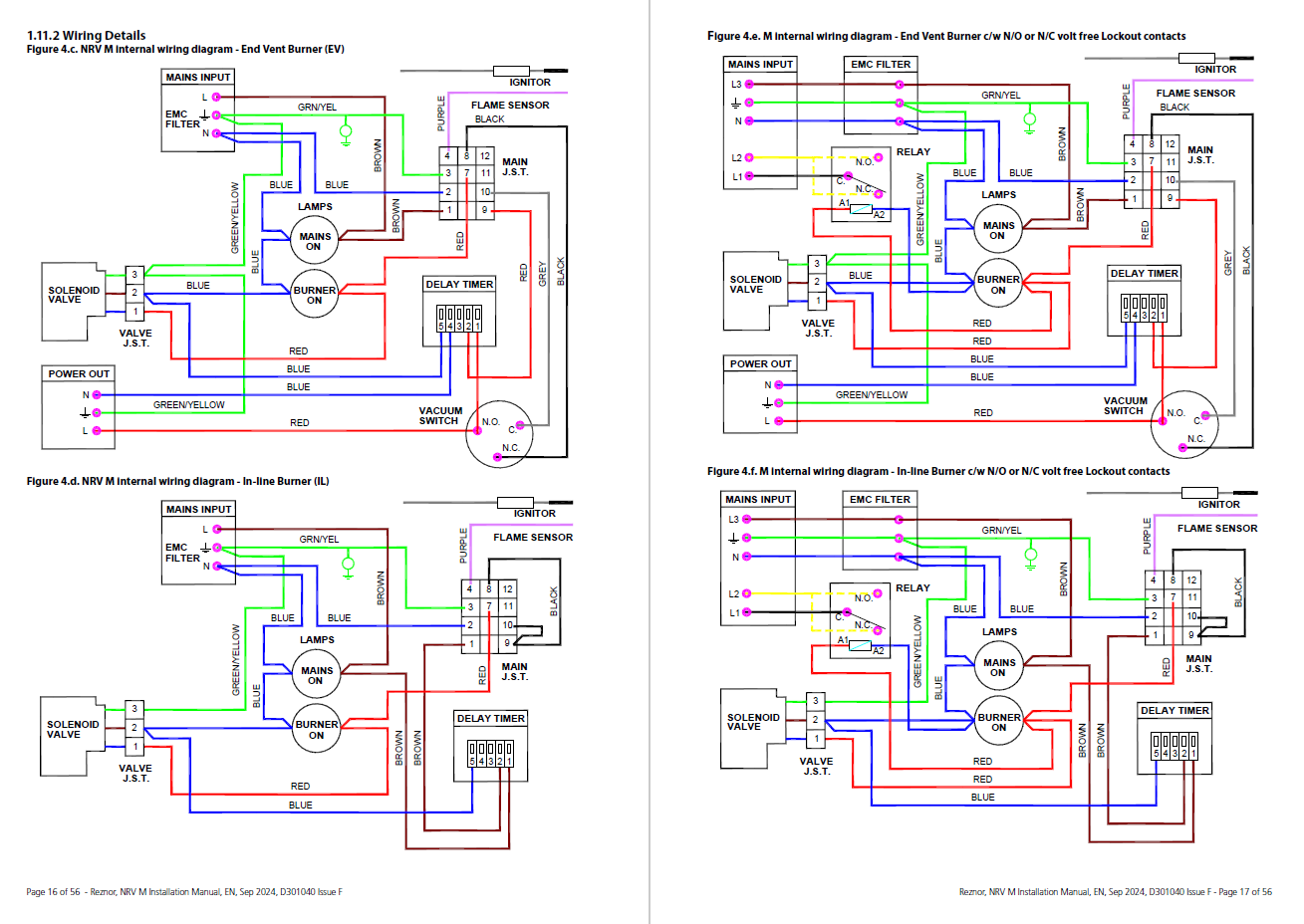

Reznor, NRV, M Installation Manual, EN 2024-04, D301040 Iss E



Language: English
Production status: current-production
Download
