RHC+ Gas Fired Heat Module

Back by popular demand, Reznor’s RHC+ is the latest generation heat module on the market. Fully packed with net efficiencies of up to 109%, the ultra LowNox RHC+ is ideal for replacing LPHW or electrical coils to gas. With a modular design to fit a wide variety of applications, the RHC+ can easily be retrofitted to replace existing units from other suppliers as well as older RHC appliances.

The RHC+ is next generation of heating modules, ideal for installation in ductwork systems and a variety of industrial applications including drying and curing.

This product is custom built to fit each application. For more information, please contact our sales department.

PLEASE NOTE:
Have a Nortek trade account? Ensure your account is connected and log in to see personalised discounted prices. Contact us.

Product Description

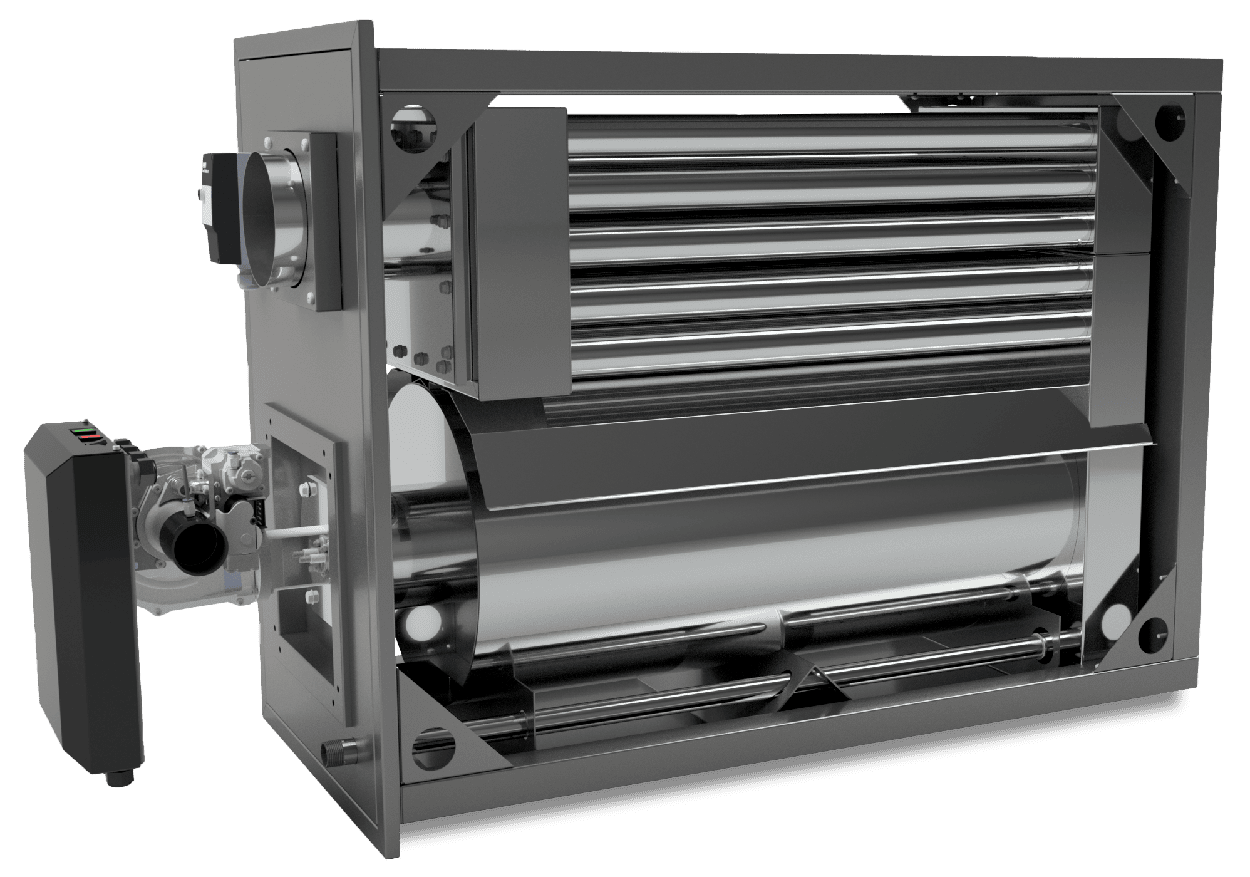

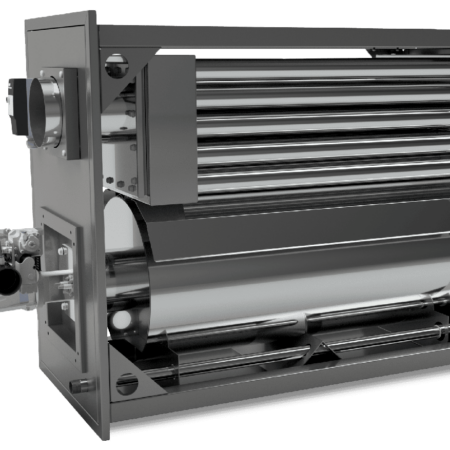

With heat outputs of 10-1000kw, the RHC+ Gas Fired Heat Module is delivered factory assembled on a frame, designed for straightforward mounting on coil slides. Each module is fully wired and equipped with easily accessible burner controls, consolidated on a single side.

Suitable for both internal and external applications, the RHC+ Gas Fired Heat Module is engineered for rapid and simplified installations that integrate seamlessly into Air Handling units. These monobloc units offer a combination of high efficiency and a broad turndown ratio of up to 18:1 optimizing energy consumption based on output and control system configurations.

Model Range:

•Vertical mounted single module – 7 models 30 to 200 kW

•Horizontal mounted single module – 7 models 30 to 200kW

•Horizontal modules – 16 models 30 to 1000 kW

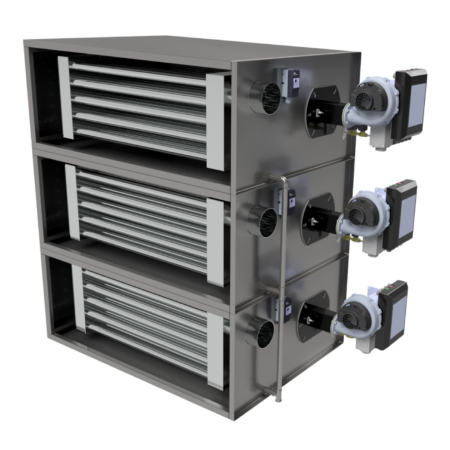

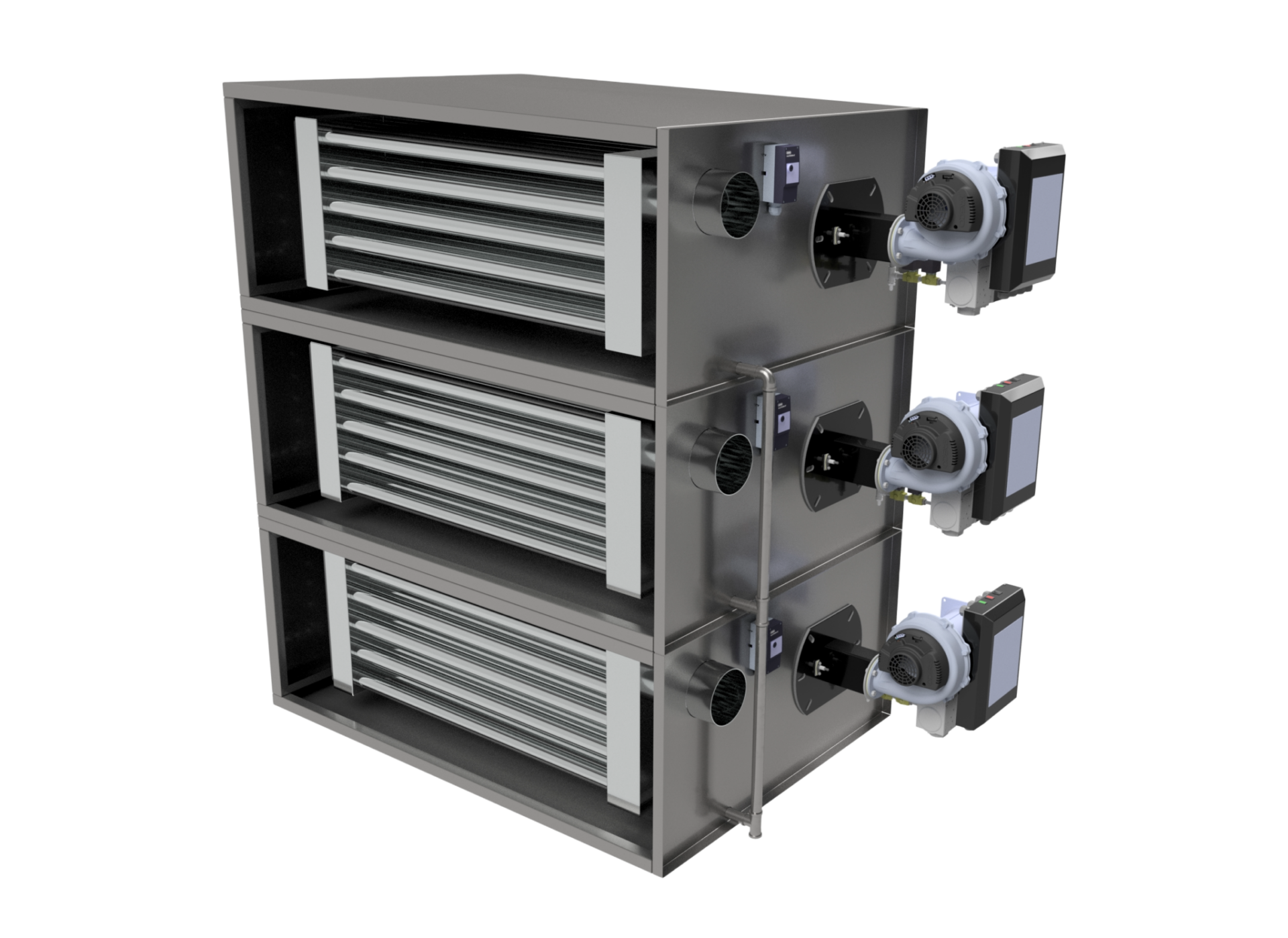

Where higher heat outputs are required, the heat modules can be stacked, mounted in series or side by side

Features and Benefits

• Made In Britain
• High efficiency – condensing or non-condensing
• Process drying up to 250°C
• Replaces older RHC4000 & 8000 units & other heat modules on the market
• Modular, compact design for AHU installations (Vertical, Horizontal, or Stacked)
• High turndown ratio in module format up to 50:1
• High temperature heat modules available
• Fuels – Natural Gas, LPG, Kerosene & Oil (HVO)
