BTHE/BTLHE Low NOx Radiant Gas Heaters – EU


The BTHE and BTLHE is our latest range of EU compliant low NOx radiant ‘u’ tube and linear heaters, CE certified and ErP 2025 ready for use in non-domestic installations. Built with increased energy efficiency in mind, the BT’ range achieves over 80% seasonal efficiency. Expertly engineered in line with the new eco design criteria, applicable to space heaters sold into the EU.


This product is custom built to fit each application. For more information, please contact our sales department.

PLEASE NOTE:
Have a Nortek trade account? Ensure your account is connected and log in to see personalised discounted prices. Contact us.

Product Description

Effective 1st July, the EU rolled out new eco-design legislation impacting space heaters sold across Europe, including Ireland.

The Key changes are: –

• An increase in the seasonal space heating energy efficiency value from not less than 74.0% to 80.0%.
• Reduction in NOx emissions so that they may not exceed 180 mg/kWh from 200 mg/kWh.

To meet these new standards, the upgraded BT’ heaters now deliver <180 mg/kWh NOx emissions and officially replace Vision Radiant systems sold in the EU only.

What’s New?

The 2025 ErP-ready BTHE and BTLHE models simplify installation thanks to a cast aluminium monobloc burner that integrates the combustion fan directly into the burner housing. This smart engineering makes them the go-to solution for radiant heating across Europe.

With net heat outputs ranging from 20kW to 50kW (gross), the BTHE and BTLHE range maximises radiation efficiency using advanced reflector technology.

These low-NOx radiant gas heaters feature a slimline emitter and a refined, modern design. Updates include redesigned end caps, robust support brackets, and a sleek new canopy on the BTLHE variant. The compact build incorporates deeper reflectors that direct heat downward, minimising loss to ceilings and surrounding areas.

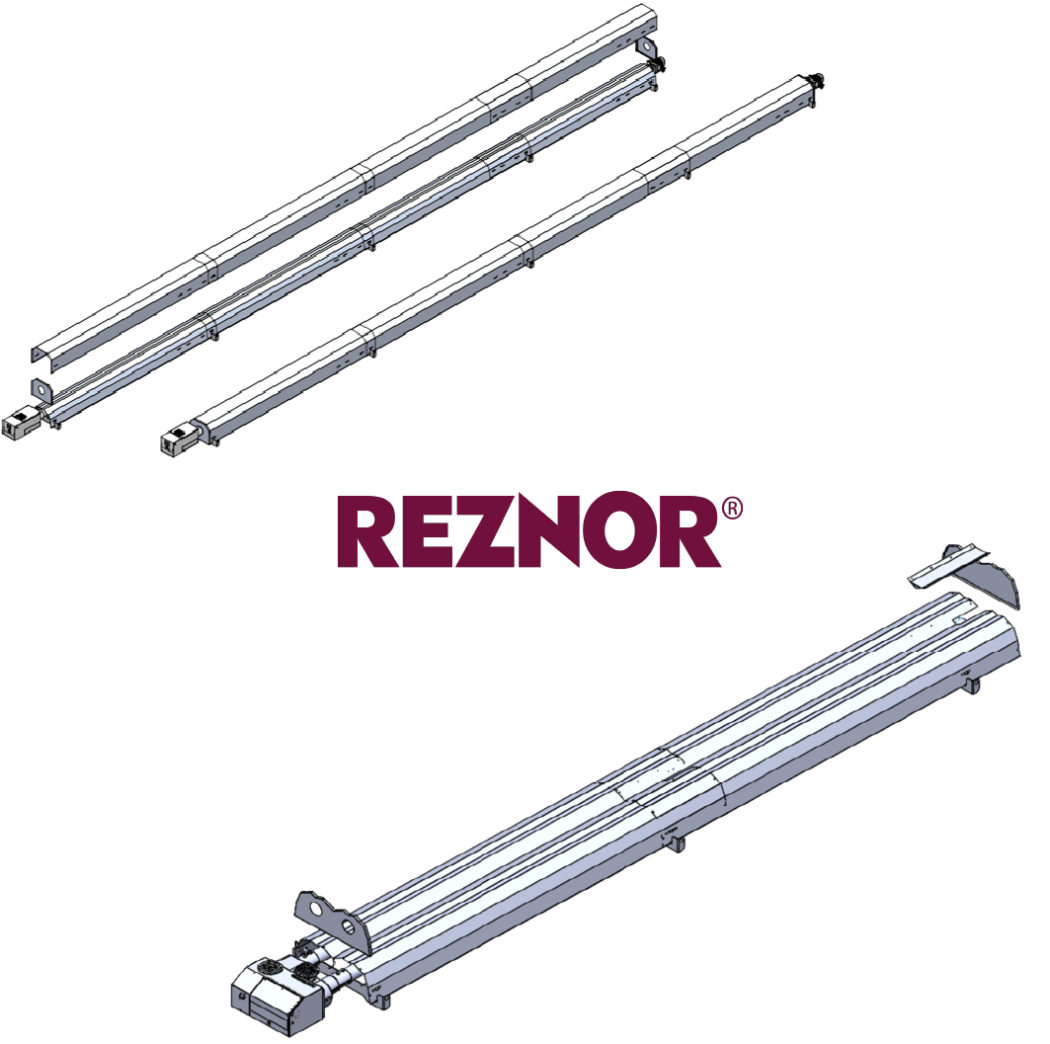

Model Variants:
• BTHE – ‘U’ Tube
• BTLHE – Linear
• Natural Gas & Propane
• BTHE/BTLHE heater lengths 5-16m

Features and Benefits

• Quick and simple installation
• Controlled tube expansion
• Exclusive “Venturi” burner with long flame attachment and built-in electrode
• Suitable for global or zone heating
• Operating indicator LEDs visible from ground level
• Silent operation
• Energy efficient

Brochures + Manuals

Product GuideInstallation Manual

Product Guide

English

BTHE Radiant ‘U’ Tube Heater Sales Brochure



Language: English
Production status: current-production
Download

BTLHE Radiant Linear Tube Heater Sales Brochure



Language: English
Production status: current-production
Download

Installation Manual

English

BTHE Radiant ‘U’ Tube Heater Installation Manual



Language: English
Production status: current-production
Download

BTLHE Radiant Linear Tube Heater Installation Manual



Language: English
Production status: current-production
Download
